One-Stop PCBA Manufacturing
Founded in 2001, SHPCB provides one-stop PCB manufacturing, SMT assembly, and components sourcing services to global electronics companies.
24+
Years Experience
5000+
Projects Completed
100+
Global Clients
98%
Customer Satisfaction
Trusted by Leading Businesses
Tech Company
Pro Electronics
Medical Technology
Automotive Company
Aerospace Electronics
Our Services
Comprehensive PCB & PCBA solutions to meet your manufacturing needs
PCB Manufacturing
Prototype to mass production of high-quality PCBs with advanced technologies and strict quality control.
PCBA & SMT Assembly
Turnkey and consigned assembly services with state-of-the-art SMT lines and comprehensive testing capabilities.
Components Sourcing
Global electronic components procurement with risk management and cost optimization solutions.

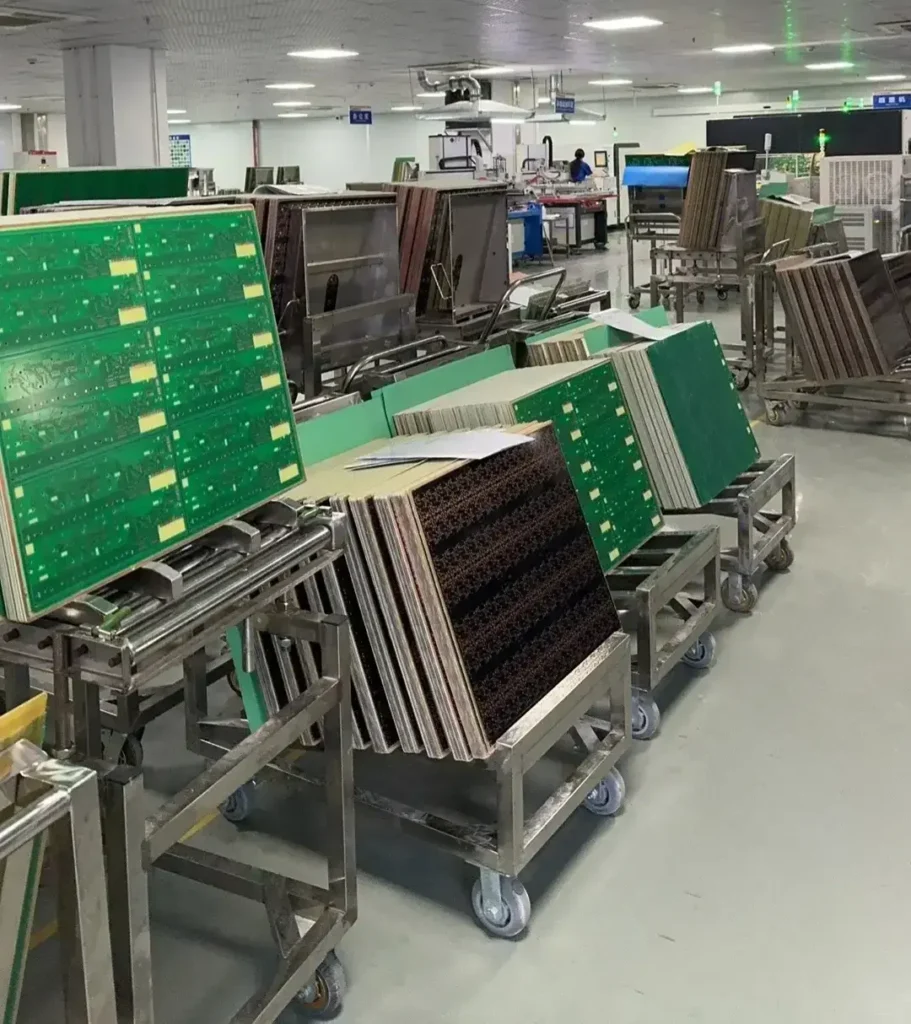

PCB Manufacturing
Capabilities
- Rigid PCB, Flexible PCB, Rigid-Flex PCB
- 1–30 layers with advanced technologies
- Prototype, Small Batch, and Mass Production
- Various materials including FR-4, Polyimide, PTFE
- Multiple surface finishes available

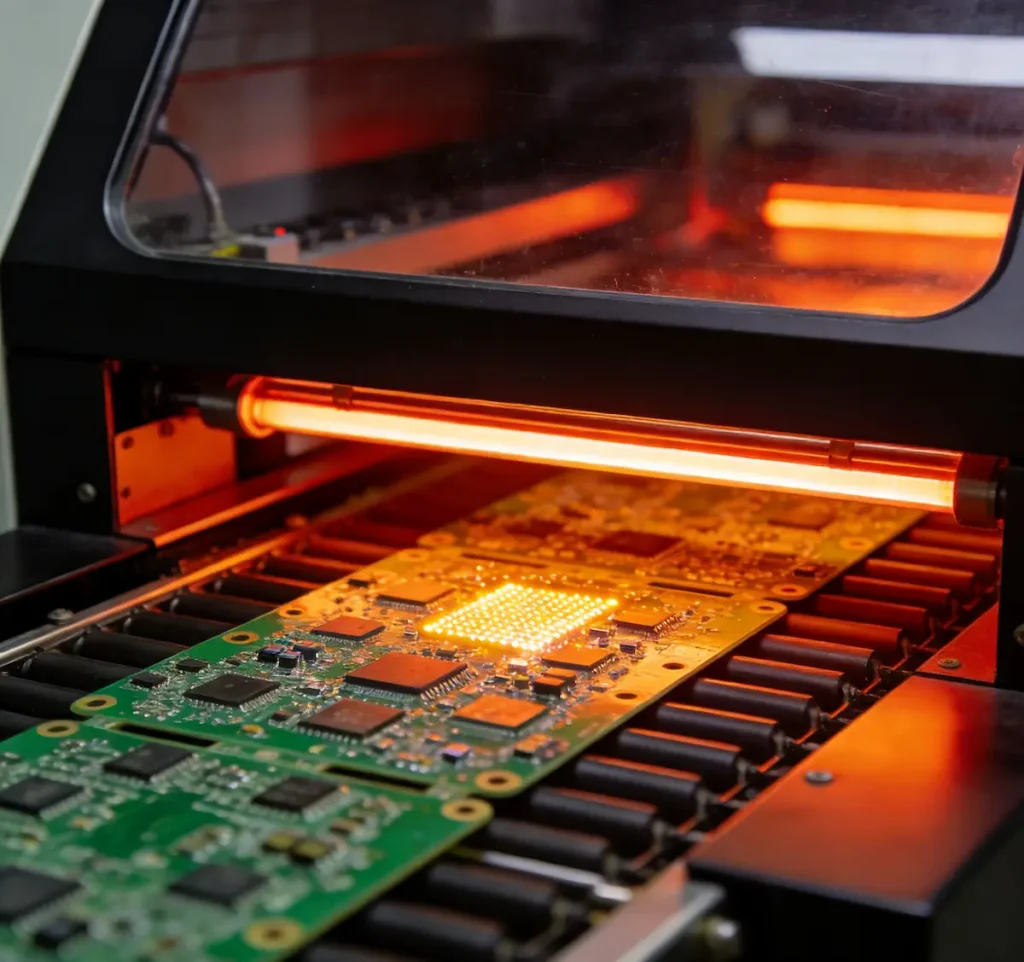

PCBA & SMT Assembly
Assembly Services
- SMT, THT, and Mixed Technology Assembly
- Turnkey and Consigned Assembly Options
- Comprehensive Testing & Quality Control
- Through-hole, BGA, QFN, and Fine-pitch Components
- Conformal Coating and Potting Services

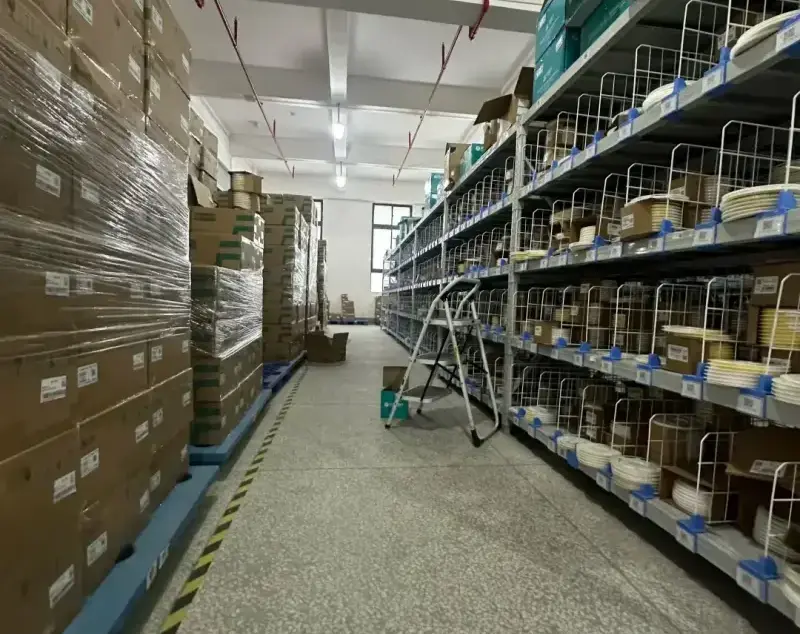

Components Sourcing
Sourcing Services
- Global procurement network for electronic components
- Obsolete and hard-to-find components solutions
- Counterfeit prevention and quality verification
- Cost optimization and risk management
- Consignment and turnkey options available
Manufacturing Capabilities
Advanced PCB manufacturing capabilities to meet your technical requirements
| Parameter | Mass Production | Prototyping |
|---|---|---|
| Layer Count | 1–20 layers | 1–30 layers |
| Maximum Board Size | 500 × 600 mm | 580 × 800 mm |
| Minimum Line Width / Spacing | 0.1 / 0.1 mm | 0.075 / 0.075 mm |
| Copper Thickness | Outer: 35–280 μm | |
| Inner: 17–280 μm | ||
| Board Thickness | 0.2–6.0 mm | |
| Drilling (Mechanical) | Min finished hole: 0.1 mm | |
| Hole tolerance: ±0.075 mm | ||
| Impedance Control | ±10% | |
| Surface Finishes | HASL (Lead / Lead-free) | |
| ENIG | ||
| Immersion Tin | ||
| Immersion Silver | ||
| OSP | ||
| Hard Gold / Gold Fingers | ||
| ENEPIG | ||
Standard Production Lead Times
| PCB Type | Lead Time |
|---|---|
| 2-layer PCB | 4–7 days |
| 4-layer PCB | 6–8 days |
| 6-layer PCB | 7–10 days |
| 8-layer PCB | 8–12 days |
| 10-layer PCB | 10–14 days |
| 12-layer PCB | 12–16 days |
| 14-layer PCB | 14–18 days |
| 16 layers & above | per project |
Note: Lead times may vary based on specific requirements and order volume.
Quality & Equipment
State-of-the-art equipment and strict quality control processes

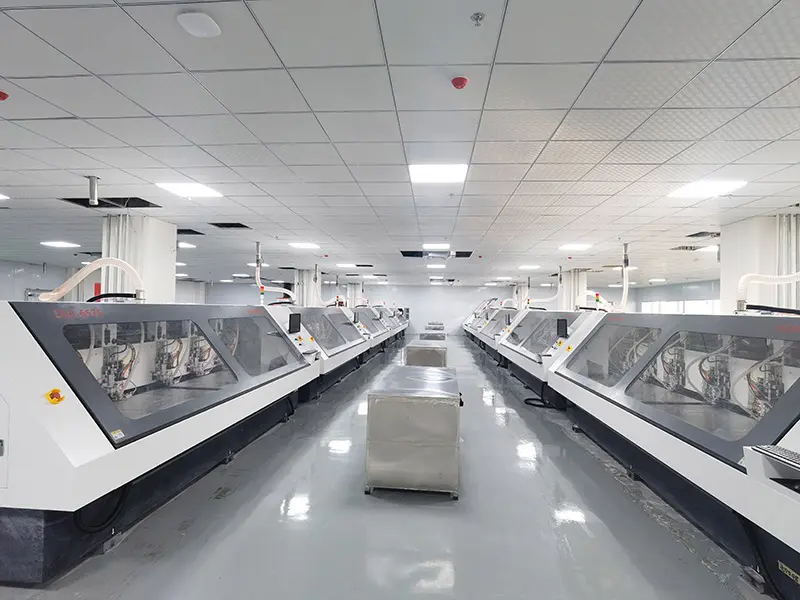

Advanced Equipment
AOI (Automated Optical Inspection)
High-precision AOI systems for detecting defects in PCBs and assembled boards, ensuring consistent quality and reliability.
Direct Imaging
Advanced direct imaging technology for precise circuit pattern transfer, enabling finer lines and tighter spacing.
Laser Drilling
State-of-the-art laser drilling systems for creating microvias and high-density interconnections with exceptional precision.

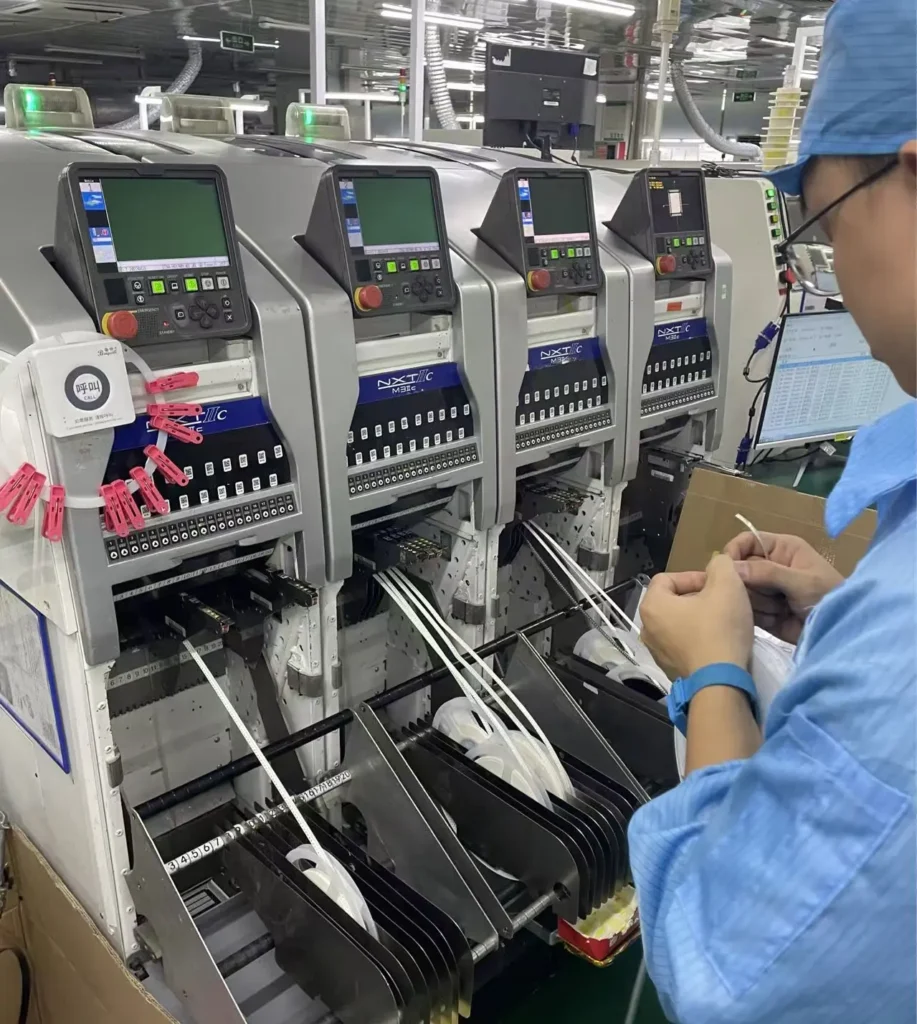

SMT Assembly Lines
High-speed SMT lines with advanced placement capabilities for complex components including BGAs, QFNs, and fine-pitch devices.
Quality Assurance
IPC Standards Compliance
We strictly adhere to IPC standards for PCB manufacturing and assembly, ensuring the highest quality and reliability for your products.
Comprehensive Testing
Our quality control includes electrical testing, visual inspection, AOI, X-ray inspection, and functional testing as required.
Quality Management System
We have implemented a robust quality management system to ensure consistent processes and continuous improvement.
Expert Quality Team
Our dedicated quality team consists of experienced professionals who monitor every stage of the manufacturing process.
Industries We Serve
Providing specialized PCB solutions for various industries
Telecommunications
High-performance PCBs for communication infrastructure and networking equipment.
Consumer Electronics
Compact and reliable PCBs for smart devices, wearables, and home appliances.
Medical Devices
Precision PCBs for diagnostic equipment, patient monitoring systems, and medical instruments.
Automotive
Automotive-grade PCBs for infotainment systems, engine control units, and safety components.
Aerospace & Defense
High-reliability PCBs for avionics, satellite systems, and defense electronics.

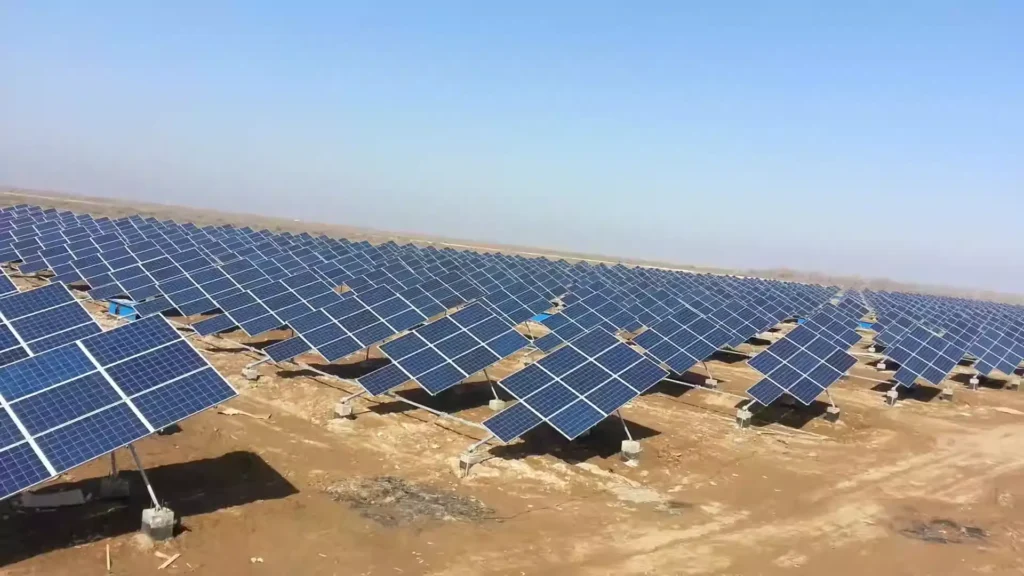

Solar
High – reliability PCBs tailored for solar inverters, driving the solar energy transition.
Why Choose SHPCB
Our competitive advantages as your PCB manufacturing partner
One-Stop Solution
Comprehensive services from design to manufacturing, assembly, and testing.
Advanced Technology
State-of-the-art equipment for complex PCB manufacturing up to 30 layers.
Strict Quality Control
Compliant with IPC standards and equipped with AOI and electrical testing.
Global Reach
Serving clients worldwide with reliable logistics and on-time delivery.
Strong Technical Capabilities
With advanced PCB manufacturing technologies and comprehensive quality control systems, we can meet various customer requirements from multilayer boards to HDI boards, from rigid boards to flexible boards.
FAQs & Solutions
Answers to common questions about our services
What files are required for PCB orders?
We accept Gerber files, CAD files (DXF, DWG), or design files from popular PCB design software like Altium Designer, Eagle, KiCad, and OrCAD. For PCBA orders, we also need BOM (Bill of Materials) and pick-and-place files.
How do you handle urgent orders?
We offer expedited services for urgent orders. Contact our sales team with your specific requirements, and we’ll provide a customized solution to meet your tight deadlines while maintaining our high quality standards.
What material options do you offer?
We support various PCB materials including FR-4, Polyimide, High-frequency materials (PTFE/Teflon), and CEM1/CEM3. Our technical team can help you select the most suitable material for your specific application.
Do you provide NDA and design confidentiality?
Yes, we take intellectual property protection very seriously. We are happy to sign NDAs to protect your designs and ensure complete confidentiality throughout the manufacturing process.
About SHPCB
A trusted PCB & PCBA manufacturing partner since 2001
Our Story
Founded in 2001, SHPCB is a high-tech enterprise specializing in PCB design, manufacturing, and assembly. Over 24 years of development, we have become an industry-leading PCB solutions provider, serving customers in telecommunications, medical, automotive, industrial control, and other fields worldwide.

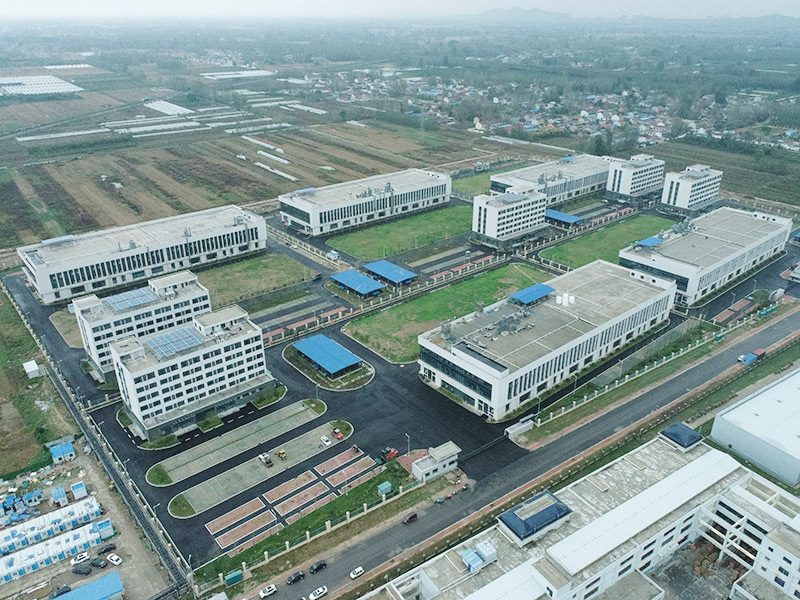

We have modern production bases and advanced manufacturing equipment, while bringing together a team of experienced engineers and technicians. With excellent quality, innovative technology, and quality service, we have won the trust and recognition of global customers.
